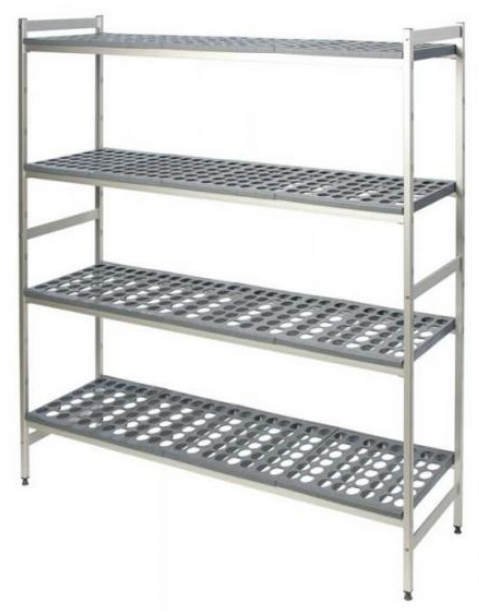

Rayonnage à structure (échelle + longerons) équipée de clayette amovible résistant à une température de -30°C.
Agrée NF "Hygiène alimentaire" (NSF "Food Equipment") par l'AFNOR.
Caractéristiques:
- Grande rigidité grâce à la conception d'assemblage (longeron/poteau) par emmanchement conique (breveté) avec bride d'assemblage en Duralinox
- Reroue d'angle sur toute la profondeur, sans poteau
- Montage rapide sans outils
- Possibilités de régler sans outils chaque niveau à la hauteur désirée au pas de 150mm
- Réglage fin par vérins composites
- Nettoyage facile grâce aux petites clayettes amovibles (lavable en machine)
- Echelle neutre livrées sans bride, ces dernières étant livrées avec les niveaux
- Accessibilité totale des 2 côtés (pas de croisillon)
- Possibilité de montage droit, en "L", en "U", et en 'Croix"
- Les clayettes en Duralinox sont réversibles (tube plat ou demi-rond)
- faculté de panacher les 2 qualités de matières
- charge maximum par niveau: 120kg en polymère et 200kg en Duralinox uniformément répartis
- charge maximum entre 2 échelles 600kg
Utilisations:
- Chambre froide - Grande cuisine - Réserves - Laveries
- Buanderies - Salles propres - Laboratoires - Batteries
- clayette Polymère
- 3 hauteurs: 1685 - 2100 - 2400 mm (Nous consulter pour autres dimensions)
Pour un rayonnage mobile : 1 échelle 1820 mm avec roulette (1 roulette simple + 1 roulette avec frein) :
- Profondeur 360 mm
- Profondeur 460 mm
- Profondeur 560 mm
Réf. TC | Libellé | |||
---|---|---|---|---|
266629888 | Rayonnage | 360 | 5247 | 120+2x132+150 |
269814718 | / | 360 | 5307 | 90+3x150 |
252359274 | / | 360 | 5367 | 3x132+150 |
814337969 | / | 360 | 5427 | 120+132+2x150 |
753255066 | / | 360 | 5487 | 108+3x150 |
827631159 | / | 360 | 5547 | 2x132+2x150 |
471873317 | / | 360 | 5607 | 120+3x150 |
345374961 | / | 360 | 5667 | 2x132+150+162 |
336179500 | / | 360 | 5727 | 132+3x150 |
419782773 | / | 360 | 5787 | 2x132+2x162 |
13578712 | / | 360 | 5847 | 132+2x150+162 |
587231571 | / | 360 | 5907 | 4x150 |
322440264 | / | 360 | 5967 | 132+150+2x162 |
833822112 | / | 360 | 6027 | 3x150+162 |
848069720 | / | 360 | 6087 | 132+3x162 |
185082587 | / | 360 | 6147 | 2x150+2x162 |
366795380 | / | 360 | 6207 | 132+2x162+174 |
603160423 | / | 360 | 6267 | 150+3x162 |
290483100 | / | 360 | 6327 | 132+162x174 |
419575380 | / | 360 | 6387 | 2x150+2x174 |
350860233 | / | 360 | 6447 | 132+3x174 |
368432794 | / | 360 | 6507 | 150+162+2x174 |
90625893 | / | 360 | 6627 | 150+3x174 |
784441126 | / | 360 | 6747 | 162+3x174 |
703225559 | / | 360 | 6867 | 4x174 |
81135838 | / | 460 | 5247 | 120+2x132+150 |
523721434 | / | 460 | 5307 | 90+3x150 |
682022372 | / | 460 | 5367 | 3x132+150 |
767623032 | / | 460 | 5427 | 120+132+2x150 |
473673321 | / | 460 | 5487 | 108+3x150 |
413904054 | / | 460 | 5547 | 2x132+2x150 |
287437987 | / | 460 | 5607 | 120+3x150 |
366331982 | / | 460 | 5667 | 2x132+150+162 |
913267954 | / | 460 | 5727 | 132+3x150 |
206675669 | / | 460 | 5787 | 2x132+2x162 |
349108514 | / | 460 | 5847 | 132+2x150+162 |
902110874 | / | 460 | 5907 | 4x150 |
843607865 | / | 460 | 5967 | 132+150+2x162 |
748046831 | / | 460 | 6027 | 3x150+162 |
803541511 | / | 460 | 6087 | 132+3x162 |
305284830 | / | 460 | 6147 | 2x150+2x162 |
578611006 | / | 460 | 6207 | 132+2x162+174 |
134401367 | / | 460 | 6267 | 150+3x162 |
156644144 | / | 460 | 6327 | 132+162x174 |
117755113 | / | 460 | 6387 | 2x150+2x174 |
692949838 | / | 460 | 6447 | 132+3x174 |
587365143 | / | 460 | 6507 | 150+162+2x174 |
96841881 | / | 460 | 6627 | 150+3x174 |
563342127 | / | 460 | 6747 | 162+3x174 |
460269643 | / | 460 | 6867 | 4x174 |
560505402 | / | 560 | 5247 | 120+2x132+150 |
670266180 | / | 560 | 5307 | 90+3x150 |
523930836 | / | 560 | 5367 | 3x132+150 |
376252123 | / | 560 | 5427 | 120+132+2x150 |
571470641 | / | 560 | 5487 | 108+3x150 |
360558815 | / | 560 | 5547 | 2x132+2x150 |
457387962 | / | 560 | 5607 | 120+3x150 |
95192075 | / | 560 | 5667 | 2x132+150+162 |
42581187 | / | 560 | 5727 | 132+3x150 |
225010995 | / | 560 | 5787 | 132+2x150+162 |
568865397 | / | 560 | 5847 | 132+2x150+162 |
456485242 | / | 560 | 5907 | 4x150 |
512448982 | / | 560 | 5967 | 132+150+2x162 |
935197380 | / | 560 | 6027 | 3x150+162 |
369753196 | / | 560 | 6087 | 132+3x162 |
719124651 | / | 560 | 6147 | 2x150+2x162 |
284305895 | / | 560 | 6207 | 132+2x162+174 |
271864071 | / | 560 | 6267 | 150+3x162 |
562732517 | / | 560 | 6327 | 132+162x174 |
32352727 | / | 560 | 6387 | 2x150+2x174 |
75405583 | / | 560 | 6447 | 132+3x174 |
868017347 | / | 560 | 6507 | 150+162+2x174 |
610963733 | / | 560 | 6627 | 150+3x174 |
209806950 | / | 560 | 6747 | 162+3x174 |
24661492 | / | 560 | 6867 | 4x174 |
