Portée [Max] |
3 kg; 6 kg |
6 kg; 15 kg |
15 kg; 30 kg |
30 kg; 60 kg |
Lecture [d] |
0,001 ; 0,002 kg |
0,002 ; 0,005 kg |
0,005 ; 0,01 kg |
0,01 ; 0,02 kg |
Échelon de vérification [e] |
0,001 ; 0,002 kg |
0,002 ; 0,005 kg |
0,005 ; 0,01 kg |
0,01 ; 0,02 kg |
Poids minimal [Min] |
0,02 ; 0,04 kg |
0,04 ; 0,1 kg |
0,1 ; 0,2 kg |
0,2 ; 0,4 kg |
Surface de pesée (L x P x H) mm |
300 x 300 x 110 |
300 x 240 x 110 |
400 x 300 x 110 |
400 x 300 x 110 |
Reproductibilité |
0,001 ; 0,002 kg |
0,002 ; 0,005 kg |
0,005 ; 0,01 kg |
0,01 ; 0,02 kg |
Linéarité |
± 0,001 ; 0,002 kg |
± 0,002 ; 0,005 kg |
± 0,005 ; 0,01 kg |
± 0,01 ; 0,02 kg |
Température ambiante |
-10 °C – 40 °C |
-10 °C – 40 °C |
-10 °C – 40 °C |
-10 °C – 40 °C |
Poids minimale par pièce au comptage (normal) |
2,5 g |
5 g |
10 g |
20 g |
Possibilité d‘évaluation de la conformité en usine |
✔ |
✔ |
✔ |
✔ |

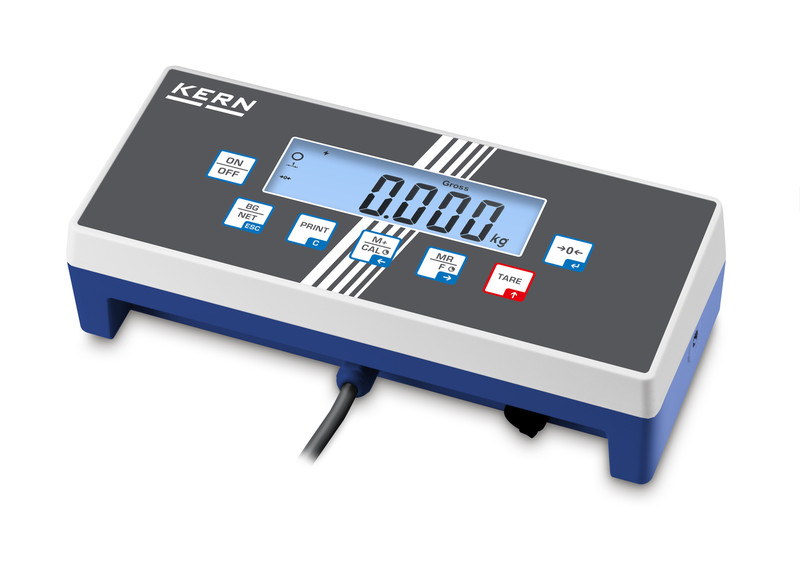

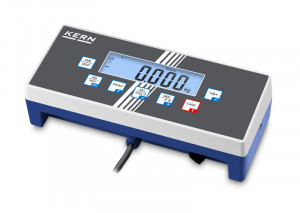

Écran type |
LCD |
LCD |
LCD |
LCD |
Écran hauteur de chiffres |
25 mm |
25 mm |
25 mm |
25 mm |
Matériau plateau de pesée |
inox |
inox |
inox |
inox |
Matériau plateforme |
acier doux |
acier doux |
acier doux |
acier doux |
Afficheur longueur de câble |
3 m |
3 m |
3 m |
3 m |
Poids net env. |
6 kg |
6 kg |
8 kg |
8 kg |
Protection IP - écran |
IP65 |
IP65 |
IP65 |
IP65 |
Protection IP - plateforme |
IP65 |
IP65 |
IP65 |
IP65 |
Protection IP - capteur de charge |
IP65 |
IP65 |
IP65 |
IP65 |
Type de construction de la balance |
Balance bi-échelon |
Balance bi-échelon |
Balance bi-échelon |
Balance bi-échelon |
|
